185mm 0.6/1kV Electrical Cable CU/PVC/PVC, 4 Core, Stranded Copper, 250 meter | BAHRA
(907 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

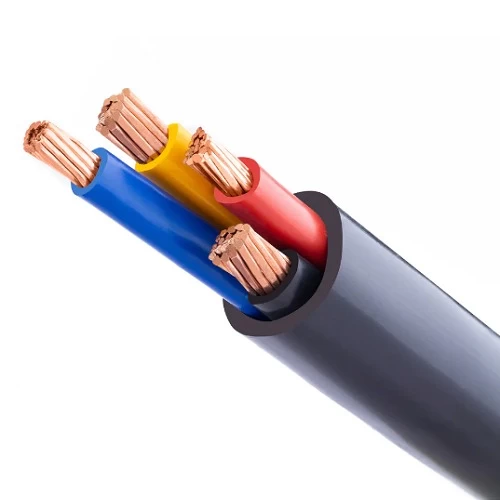

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 185mm2 size conductor, Low Voltage 0.6/1kV, The outer sheath made of high quality PVC resists yellowing from exposure to sunlight and ozone, manufactured by Bahra Cables Company, insulation color (red, yellow, blue, black).
Product description
Stranded copper power unarmored cable (CU/PVC/PVC), Produced by BAHRA Cables Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 185 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 2 mm
- Nominal Sheath Thickness: 2.6 mm
- Approx Overall Diameter: 40.6 mm
- Weight: 7843 kg/km
- Standard Packaging Cable: 250 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
