CU/PVC/PVC Stranded Copper Electric Cable, 4.5 Core, 4x50+25sq mm, 0.6/1kV, 1000 meter/Drum | BAHRA
(776 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

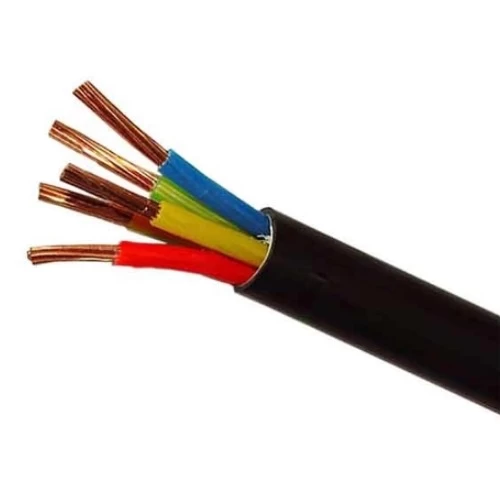

Unarmored Stranded copper power cable (CU/PVC/PVC), 4.5 core, 4x50+25mm2 size conductor, Low Voltage 0.6/1kV, The cable is UV resistant, making it suitable for outdoor use. Produced by Bahra Cables, insulation color (red, yellow, blue, black, green/yellow).
Product description
Unarmored Stranded copper power cable (CU/PVC/PVC), Produced by BAHRA Cables Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx50 mm2 ) + 25mm2
- Number of Phase Wires: 19
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.4 mm
- Nominal Insulation Thickness of Neutral: 1.2 mm
- Nominal Sheath Thickness: 1.9 mm
- Approx Overall Diameter: 27.9 mm
- Weight: 1975 kg/km
- Length : 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yelllow)
- Standard: IEC 60502-1
