95mm 0.6/1kV Electrical Cable CU/PVC/PVC, 4 Core, Stranded Copper, 500 meter | BAHRA
(1064 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

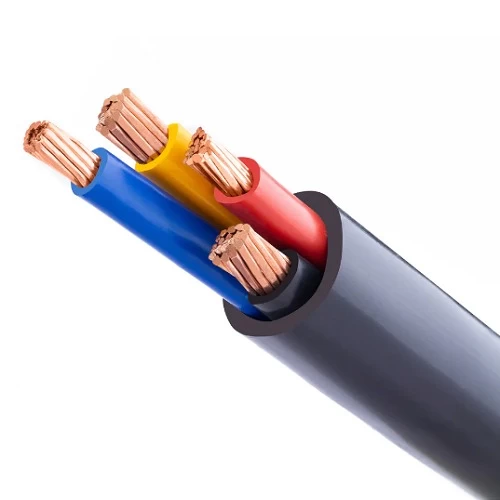

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 95mm2 size conductor, Low Voltage 0.6/1kV, The cable can be used in places that require radiation protection, manufactured by Bahra Cables Company, insulation color (red, yellow, blue, black).
Product description
Stranded copper power unarmored cable (CU/PVC/PVC), Produced by BAHRA Cables Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 95 mm2
- Number of wires: 19
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 2.2 mm
- Approx Overall Diameter: 36.4 mm
- Weight: 4155 kg/km
- Standard Packaging Cable: 500 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
