Bahra 4x500sq mm 0.6/1kV Power Cable, CU/PVC/PVC, Stranded Copper Wire, 250 meter
(826 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

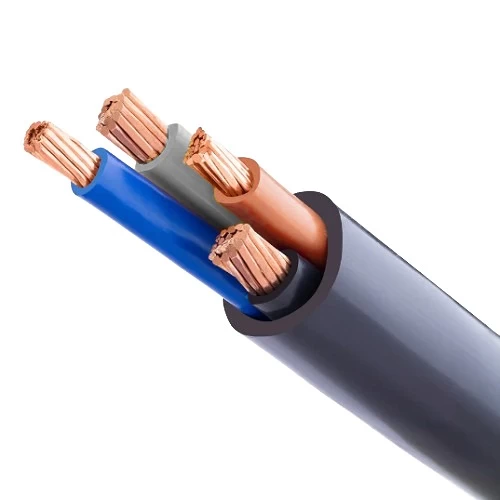

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 500mm2 size conductor, Low Voltage 0.6/1kV, The cable can be easily connected using the appropriate terminals and connectors, insulation color (blue, brown, black, gray), manufactured by Bahra Cables Company.
Product description
Stranded copper power unarmored cable (CU/PVC/PVC), Produced by BAHRA Cables Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 500 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 2.8 mm
- Nominal Sheath Thickness: 3.6 mm
- Approx Overall Diameter: 76.2 mm
- Weight: 20680 kg/km
- Standard Packaging Cable: 250 meters
- Phase Core Colors: (blue, brown, black, gray)
- Standard: BS 6724
