Passenger elevator, compact design, 630 KG load, 1.75 m/s speed, 8 persons capacity, wood finish with wooden handrail

Product description

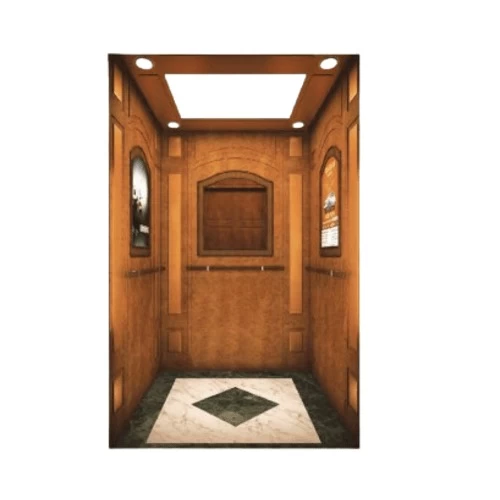

A machine roomless passenger elevator with a compact design that reflects a classic aesthetic for upscale buildings. It features a central white light-emitting ceiling panel with a wood veneer frame and auxiliary lighting on four sides. The walls are made of natural or imitation veneer combined with golden titanium accents. It includes a traditional wooden handrail and a durable PVC floor. Ideal for villas, hotels, and heritage-style buildings. Available in various designs.

• Ceiling material: Central white light-emitting panel with wood veneer and side lighting
• Wall material: Natural or imitation wood veneer combined with titanium gold
• Handrail material: Wood
• Floor material: PVC
• Color: Natural brown
• Load capacity: 630 KG
• Number of passengers: 8 persons
• Speed: 1.75 m/s
• Car dimensions: 1200x1350 mm
• Door opening dimensions: 700x2100 mm
• Shaft dimensions: 1850x1750 mm
• Pit depth: 1700 mm
• Top floor height: 4800 mm
• Motor power: 7.3 kW
• Reaction force R1: 19800 N
• Reaction force R2: 26400 N
• Load force P1: 58000 N
• Load force P2: 45600 N
• Brand: FUJI
• Design code: JG-K07
• Model: TKJW630/1.75
