Machine roomless People elevator, compact design, 1000 KG load, 13 passengers, 1 m/s speed, Wooden surface
(340 Product Views)
Machine roomless People elevator, compact design, 1000 KG load, 13 passengers, 1 m/s speed, Wooden surface, the handrail combines round wood and titanium gold. The floor is practical and durable PVC, and A refined design ideal for residences and hotels. Available in multiple styles.
Product description

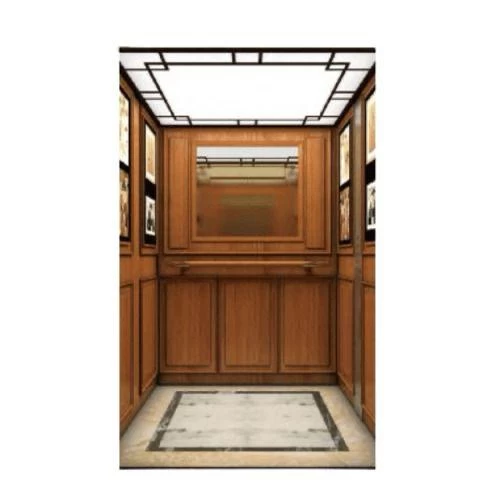

A machine roomless passenger elevator with a compact design made for buildings with limited space. It features natural or imitation wood veneer walls with a central makeup mirror that enhances visual depth. The ceiling includes a white organic panel framed in wood, and the handrail combines round wood and titanium gold. The floor is practical and durable PVC. A refined design ideal for residences and hotels. Available in multiple styles.
- Ceiling material: Wood veneer frame with white organic panel and mirror
- Wall material: Natural or imitation veneer with central makeup mirror
- Handrail material: Combination of round wood and titanium gold
- Floor material: PVC
- Color: Wood brown
- Load capacity: 1000 KG
- Number of passengers: 13 persons
- Speed: 1 m/s
- Car dimensions: 1600 × 1400 mm
- Door opening dimensions: 900 × 2100 mm
- Shaft dimensions: 2250 × 1800 mm
- Pit depth: 1500 mm
- Top floor height: 4600 mm
- Motor power: 607 kW
- Reaction force R1: 27400 N
- Reaction force R2: 39600 N
- Load force P1: 88000 N
- Load force P2: 68000 N
- Brand: FUJI
- Design code: JG-K08
- Model: TKJW1000/1
