Passenger Elevator (MRL), Safe Printed Glass Design, Acrylic Light Panel Ceiling, Flat Handrail, Vinyl Tile, 16-Person Capacity, 1250 KG Load, 1 m/s Speed
(428 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Passenger Elevator (MRL), Safe Printed Glass Design, Acrylic Light Panel Ceiling, Flat Handrail, Vinyl Tile, 16-Person Capacity, 1250 KG Load, 1 m/s Speed, dimensions and loads of the elevator can be allocated to meet the specific requirements of each project, whether it is a small residential building or a large commercial complex.
Product description

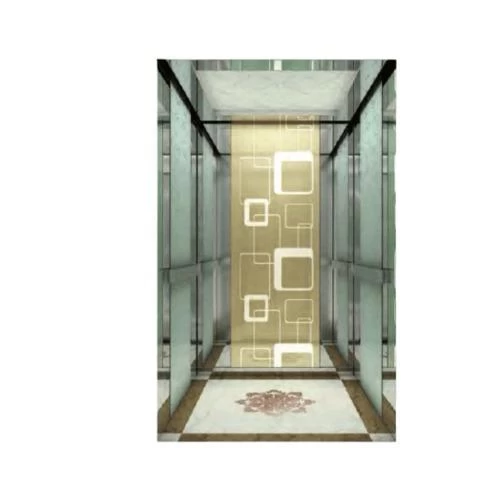

Machine roomless passenger elevator features a modern look with printed safety glass walls and a stainless mirror-framed ceiling, combined with an acrylic light-emitting panel for balanced illumination. It includes a flat stainless steel handrail for comfort and support. The PVC flooring offers durability and ease of maintenance, ideal for high-traffic residential or commercial settings. As an MRL system, it operates without a machine room, optimizing space and improving energy efficiency. Available in various designs and specifications to suit all projects.
- Ceiling material: Mirror stainless steel frame with acrylic light-emitting panel
- Wall material: Printed safety glass with stainless steel
- Handrail material: Flat stainless steel handrail
- Floor material: PVC
- Color: Silver
- Load capacity: 1250 KG
- Number of passengers: 16 persons
- Speed: 1.0 m/s
- Car dimensions: 1900x1500 mm
- Door opening dimensions: 1100x2100 mm
- Shaft dimensions: 2900x2000 mm
- Pit depth: 1600 mm
- Top floor height: 4300 mm
- Motor power: 8.5 kW
- Reaction force R1: 32200 N
- Reaction force R2: 46800 N
- Load force P1: 106000 N
- Load force P2: 81000 N
- Brand: FUJI
- Design code: JG-K17
- Model: TKW1250/1.0
