Passenger Elevator equipped with a Small Machine Room, Mirror Wall, PVC Flooring, 1350 KG Load, holds 18 Persons, 1.5 m/s Speed

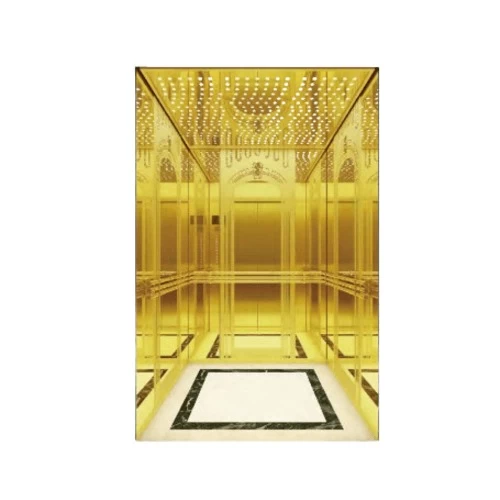

Passenger elevator with a small machine room, made of high-quality materials. It features a stylish interior design that combines shiny titanium finishes with engraved details for a luxurious look. The ceiling has a bright metallic frame that reflects light beautifully, while the mirror wall panels give the cabin a modern and elegant feel. The floor is made of durable PVC that is easy to clean, and the golden handrail adds both safety and a touch of class. This elevator is ideal for buildings that want both strong performance and a premium appearance. Available in multiple designs and specifications to suit all needs.

• Ceiling material: Perforated stainless steel mirror plate and white organic panel with aluminum alloy frame
• Wall material: Titanium, mirror with etched, hairline, and vibration finish
• Handrail material: Triple titanium stainless steel combination
• Floor material: PVC
• Color: Gold
• Load capacity: 1350 KG
• Number of passengers: 18 persons
• Speed: 1.5 m/s
• Car dimensions: 1900 × 1600 mm
• Door opening dimensions: 1100 × 2100 mm
• Shaft dimensions: 2500 × 2300 mm
• Machine room dimensions: 2500 × 2300 mm
• Pit depth: 1500 mm
• Top floor height: 4700 mm
• Motor power: 13.8 kW
• Reaction force R1: 67200 N
• Reaction force R2: 43400 N
• Reaction force R3: 8700 N
• Load force P1: 114000 N
• Load force P2: 87000 N
• Brand: FUJI
• Design code: JG-K03
• Model: TKJ1350/1.5
