Passenger Elevator (MRL), Random Texture Wall, Marble-Like Floor, 16 people, 1250 KG Load Limit, Operation Rate 1.5 m/s
(473 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Passenger Elevator (MRL), Random Texture Wall, Marble-Like Floor, 16 people, 1250 KG Load Limit, Operation Rate 1.5 m/s, Ideal for modern buildings and space-conscious projects, Available in various designs and specifications to suit. all projects.
Product description

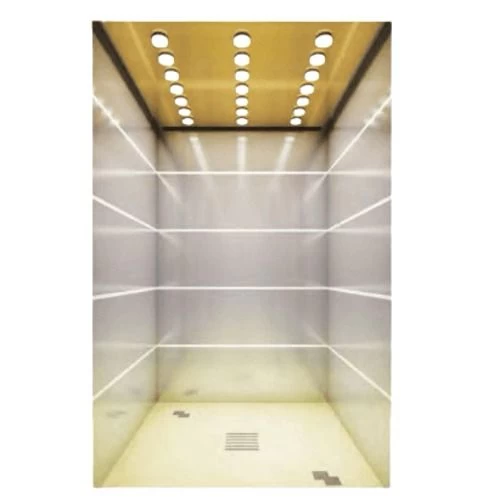

machine roomless passenger elevator showcases a premium bronze design with integrated acrylic lighting for a luxurious yet modern look. The car walls are made of irregular grain stainless steel with embedded mirror strips that enhance reflections and depth. The flooring features a marble parquet finish or imitation marble PVC, combining elegance with practicality. As an MRL system, the motor and control components are installed inside the shaft, eliminating the need for a separate machine room and reducing energy consumption by over 33%. Ideal for modern buildings and space-conscious projects. Available in various designs and specifications to suit all projects.
- Ceiling material: Bronze mirror frame with acrylic lighting decoration
- Wall material: Irregular grain stainless steel with mirror strip
- Handrail material: None
- Floor material: Marble parquet or imitation marble PVC
- Color: Silver
- Load capacity: 1250 KG
- Number of passengers: 16 persons
- Speed: 1.5 m/s
- Car dimensions: 1900 Γ 1500 mm
- Door opening dimensions: 1100 Γ 2100 mm
- Shaft dimensions: 2900 Γ 2000 mm
- Pit depth: 1700 mm
- Top floor height: 4400 mm
- Motor power: 12.7 kW
- Reaction force R1: 32200 N
- Reaction force R2: 46800 N
- Load force P1: 106000 N
- Load force P2: 81000 N
- Brand: FUJI
- Design code: JG-K11
- Model: TKJW1250/1.5
