Indoor Wooden High-Speed Passenger Elevator, 1000 KG Load, 13 Persons Capacity, 2 m/s Speed, Veneer Wall with PVC Surface
(297 Product Views)
Indoor Wooden High-Speed Passenger Elevator, 1000 KG Load, 13 Persons Capacity, 2 m/s Speed, Veneer Wall with PVC Surface, features energy -saving solutions and environmentally friendly.
Product description

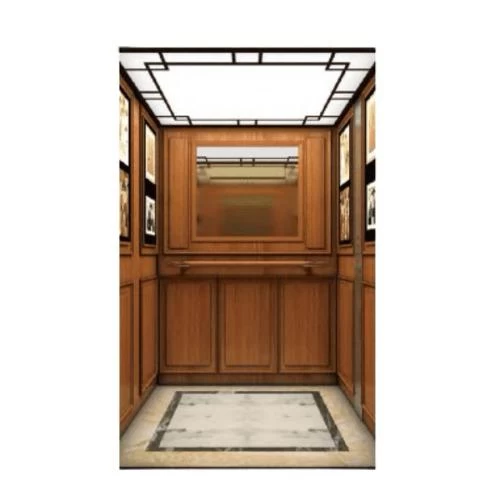

A high-speed elevator featuring a smart 32-bit networked control system that ensures fast response and stable performance using advanced CAN bus technology. It is equipped with an advanced shock-absorbing system to isolate vibrations and maximize passenger comfort. The interior is distinguished by natural or imitation veneer wood walls with a stylish central mirror frame, complemented by a round wood and titanium gold handrail. The ceiling is fitted with a unique white organic light-emitting panel with grid design. This elevator creates an elegant and refined atmosphere, available in various designs to suit all styles.
- Ceiling material: White organic light-emitting panel with veneer frame
- Wall material: Natural or imitation veneer wood with central mirror
- Handrail material: Combination of round wood and titanium gold
- Floor material: PVC
- Color: Natural Brown
- Load capacity: 1000 KG
- Number of passengers: 13 persons
- Speed: 2 m/s
- Car dimensions: 1600x1400 mm
- Door opening dimensions: 900x2100 mm
- Shaft dimensions: 2200x2100 mm
- Machine room dimensions: 2200x2100 mm
- Pit depth: 1700 mm
- Top floor height: 5000 mm
- Motor power: 13.3 kW
- Reaction force R1: 53400 N
- Reaction force R2: 32200 N
- Reaction force R3: 6000 N
- Load force P1: 88000 N
- Load force P2: 68000 N
- Brand: FUJI
- Design code: JG-K08
- Model: TKJ1000/2
