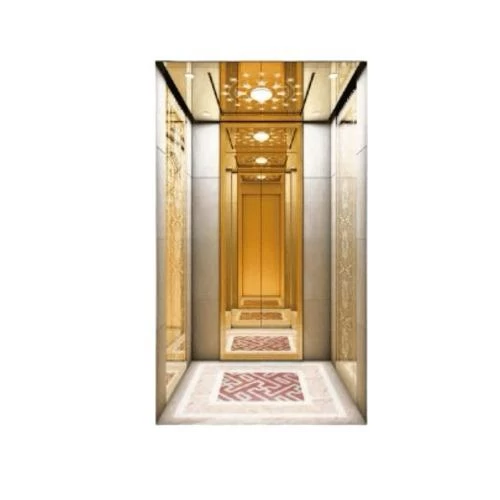

High-Speed People Lift, 630 KG Load, 8 Persons Capacity, 2 m/s Speed, Marble and Etched Titanium Mirror Wall with PVC Flooring

Product description

A high-speed elevator featuring a smart 32-bit networked control system, delivering instant response and stable performance through advanced CAN bus technology. The elevator includes an advanced shock-absorbing system to isolate vibrations, ensuring a smooth and comfortable ride. Its luxurious interior combines marble or imitation marble walls with titanium-plated etched stainless steel mirrors, topped with a ceiling of etched titanium gold mirror featuring a central light and LED lights at all four sides. The PVC flooring adds practicality, making this elevator an ideal choice for luxury hotels and upscale residential buildings.

• Ceiling material: Etched titanium gold mirror with central ceiling lamp and LED at four sides
• Wall material: Marble or imitation marble grain, titanium-plated etched stainless steel mirror
• Handrail material: None
• Floor material: PVC
• Color: Gold and Marble
• Load capacity: 630 KG
• Number of passengers: 8 persons
• Speed: 2 m/s
• Car dimensions: 1400x1100 mm
• Door opening dimensions: 800x2100 mm
• Shaft dimensions: 2000x1800 mm
• Machine room dimensions: 2000x1800 mm
• Pit depth: 1700 mm
• Top floor height: 5000 mm
• Motor power: 8.2 kW
• Reaction force R1: 44800 N
• Reaction force R2: 27400 N
• Reaction force R3: 5400 N
• Load force P1: 72000 N
• Load force P2: 56000 N
• Brand: FUJI
• Design code: JG-K05
• Model: TKJ630/2
