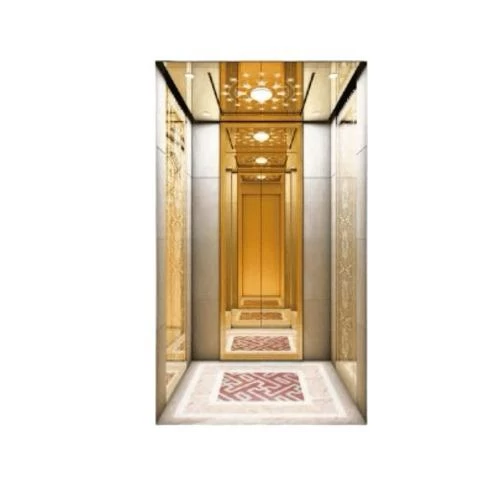

High-Speed Passenger Elevator, 1000 KG Capacity, 13 Persons Capacity, 3 m/s Speed, Marble and Etched Titanium Mirror Wall with PVC Flooring

Product description

A high-speed elevator featuring a smart 32-bit networked control system, delivering instant response and stable performance through advanced CAN bus technology. The elevator includes an advanced shock-absorbing system to isolate vibrations, ensuring a smooth and comfortable ride. Its luxurious interior combines marble or imitation marble walls with titanium-plated etched stainless steel mirrors, topped with a ceiling of etched titanium gold mirror featuring a central light and LED lights at all four sides. The PVC flooring adds practicality, making this elevator an ideal choice for luxury hotels and upscale residential buildings.

• Ceiling material: Etched titanium gold mirror with central ceiling lamp and LED at four sides
• Wall material: Marble or imitation marble grain, titanium-plated etched stainless steel mirror
• Handrail material: None
• Floor material: PVC
• Color: Gold and Marble
• Load capacity: 1000 KG
• Number of passengers: 13 persons
• Speed: 3 m/s
• Car dimensions: 1600x1400 mm
• Door opening dimensions: 900x2100 mm
• Shaft dimensions: 2200x2100 mm
• Machine room dimensions:2200x2100 mm
• Pit depth: 3200 mm
• Top floor height: 5700 mm
• Motor power: 20.3 kW
• Reaction force R1: 53400 N
• Reaction force R2: 32200 N
• Reaction force R3: 6000 N
• Load force P1: 88000 N
• Load force P2: 68000 N
• Brand: FUJI
• Design code: JG-K05
• Model: TKJ1000/3
