3x150 + 70sq mm 0.6/1kV 3.5 Core Electrical Cable, Stranded Copper Conductor, XLPE Insulated, PVC Jacketed, 500 m | RESCAB
(881 Product Views)

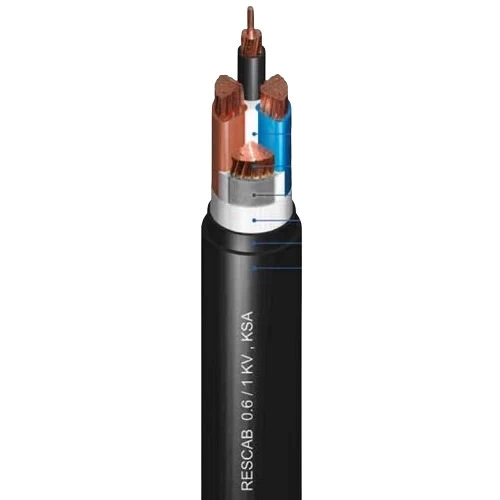

Stranded copper electrical cable (CU/XLPE/PVC), produced by Red Sea Cables (RESCAB) Company, 3 core + neutral line, 3x150+70mm2 size, 0.6/1kV, it suitable for both indoor and outdoor applications.
Product description
Stranded copper power cable (CU/XLPE/PVC), produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx150 mm2 ) + 70mm2
- Number of Phase Wires: 37
- Number of Neutral Wires: 19
- Nominal Insulation Thickness of Phase: 1.4 mm
- Nominal Insulation Thickness of Neutral: 1.1 mm
- Nominal Sheath Thickness: 2.3 mm
- Approx Overall Diameter: 47 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.124 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.268 ohm/km
- Weight: 5760 kg/km
- Standard Length : 500 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346 Latest
