120mm 3 Core 0.6/1kV Electrical Cable CU/XLPE/PVC, Stranded Copper, 500 meter | BAHRA
(917 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

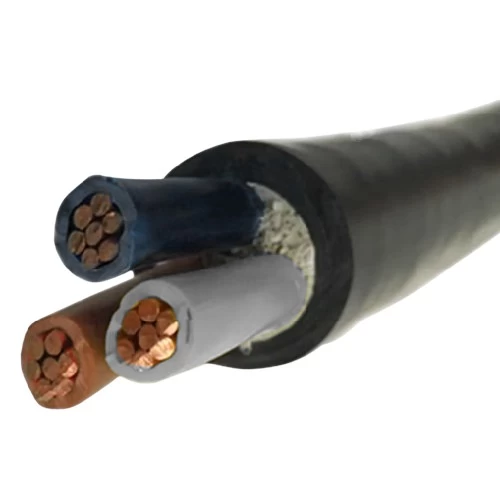

Unarmored stranded copper power cable (CU/XLPE/PVC), 3 phase, 120mm2 size conductor, 0.6/1kV, It features highly efficient electrical insulation that protects against thermal and electrical damage. It comes in brown, black, and gray colors. It is manufactured by Bahra Cables Company.
Product description
Unarmored stranded copper power cable (CU/XLPE/PVC), Produced by BAHRA Cables Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 2.1 mm
- Approx Overall Diameter: 40.6 mm
- Weight: 3830 kg/km
- Standard Length: 500 meters
- Phase Core Colors: (brown, black, grey)
- Standard: BS 5467
