70 sq mm 4 Core Copper Cable Stranded 600/1000V, XLPE Insulated, PVC Sheathed | Riyadh Cables
(7190 Product Views)

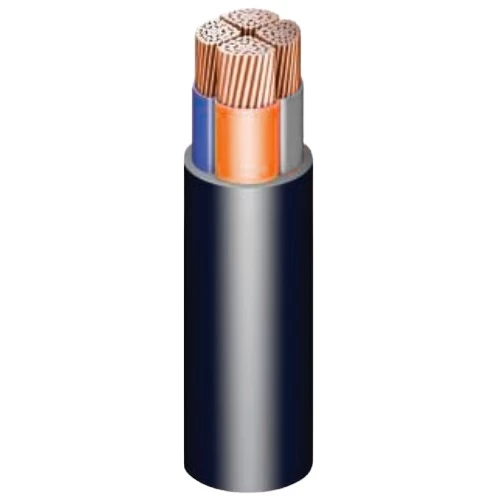

4 core stranded copper electrical cable (CU/XLPE/PVC), according to IEC 60502-1(international electrotechnical commission) standard, cable length 500 meters, size 4×70 mm2, produced by Riyadh Cables Company, insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability, (blue, brown, black, gray) color.
Product description
4 core stranded copper electrical cable (CU/XLPE/PVC), Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor type: Sectoral Stranded (sm)
- Number of Cores: 4 Core
- Conductor Size (Cross-Sectional Area): 70 mm2
- Number of wires: 12
- Nominal Insulation Thickness: 1.1 mm
- Nominal Sheath Thickness: 2 mm
- Approx Overall Diameter: 34 mm
- Weight: 3050 kg/km
- Cable Length: 500 meters
- Phase Core Color: (Blue, Brown, Black, Gray)
- Conformity According to International Standard: IEC 60502-1
