120mm2 0.6/1kV Four Core Aluminum Electrical Cable, XLPE Insulation, LS0H Sheath | Alfanar
(1243 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

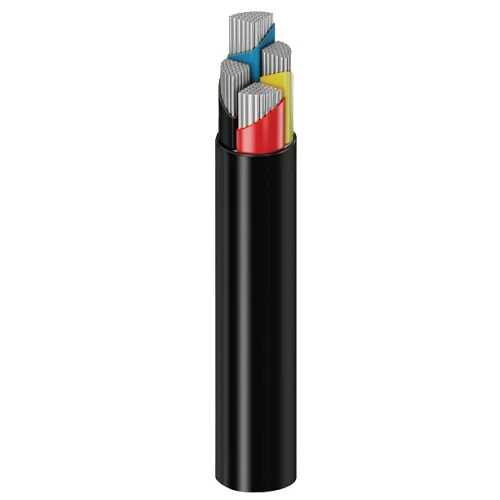

Four core aluminum cable, size 120mm2. XLPE insulation offers a unique combination of strength, flexibility, and reliability. The cable endures harsh environmental conditions, including moisture, corrosion, and chemicals. The LS0H sheath is suitable for low smoke environments. Produced by Alfanar.
Product description
Aluminum electrical cable 4 core, produced by Alfanar insulated and sheathed. The insulation offers flexibility and durability, making it suitable for a wide range of applications. It withstands high temperatures up to 90°C for extended periods without damage. The cable also endures harsh environmental conditions, such as moisture, corrosion, and chemicals. It is chloride-free, making it environmentally friendly. The outer sheath reduces smoke and toxic fumes in case of fire, making it suitable for use in fixed installations and sensitive areas like schools, hospitals, hotels, and shopping centers. Available in various shapes and sizes, with high quality and competitive prices to suit multiple needs.
- Conductor Type: Aluminum
- Conductor Shape: Stranded Circular (sm)
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Jacket: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 120 mm²
- Max DC Conductor Resistance at 20°C: 0.2530 ohm/km
- Max AC Conductor Resistance at 90°C: 0.3259 ohm/km
- Current Rating Laid in Ground: 375 Ampere
- Current Rating Laid in Ducts: 270 Ampere
- Current Rating Laid in Free Air: 339 Ampere
- Approx Overall Diameter: 37.6 mm
- Weight: 1945 kg/km
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
