150mm2 0.6/1kV Four Core Aluminum Cable, XLPE Insulation, LSZH Sheath | Alfanar
(738 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

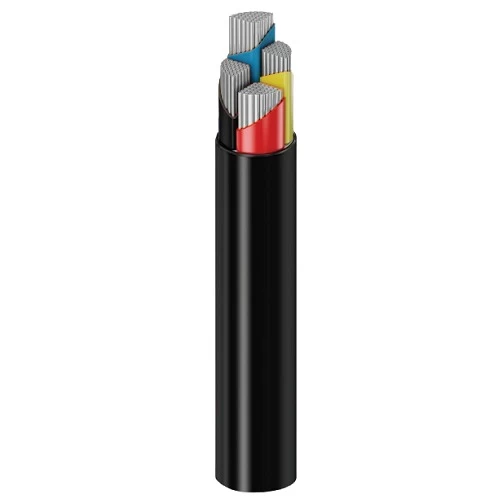

Four core aluminum cable, size 150mm2. The cable withstands high temperatures up to 90°C for extended periods without damage. Chloride-free, making it environmentally friendly. The LSZH sheath reduces smoke and toxic fumes in case of fire. Produced by Alfanar.
Product description
Aluminum electrical cable 4 core, produced by Alfanar insulated and sheathed. The insulation offers flexibility and durability, making it suitable for a wide range of applications. It withstands high temperatures up to 90°C for extended periods without damage. The cable also endures harsh environmental conditions, such as moisture, corrosion, and chemicals. It is chloride-free, making it environmentally friendly. The outer sheath reduces smoke and toxic fumes in case of fire, making it suitable for use in fixed installations and sensitive areas like schools, hospitals, hotels, and shopping centers. Available in various shapes and sizes, with high quality and competitive prices to suit multiple needs.
- Conductor Type: Aluminum
- Conductor Shape: Stranded Circular (sm)
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Jacket: LSHF (Low Smoke Halogen Free)
- Voltage: 600/1000 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 150 mm²
- Max DC Conductor Resistance at 20°C: 0.2060 ohm/km
- Max AC Conductor Resistance at 90°C: 0.2660 ohm/km
- Current Rating Laid in Ground: 430 Ampere
- Current Rating Laid in Ducts: 310 Ampere
- Current Rating Laid in Free Air: 389 Ampere
- Approx Overall Diameter: 40.8 mm
- Weight: 2290 kg/km
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
