185mm2 0.6/1kV Four Core Aluminum Electrical Cable, XLPE Insulation, LSZH Sheathed | Alfanar

185mm2 0.6/1kV Four Core Aluminum Electrical Cable, XLPE Insulation, LSZH Sheathed | Alfanar

(580 Product Views)

YouMats

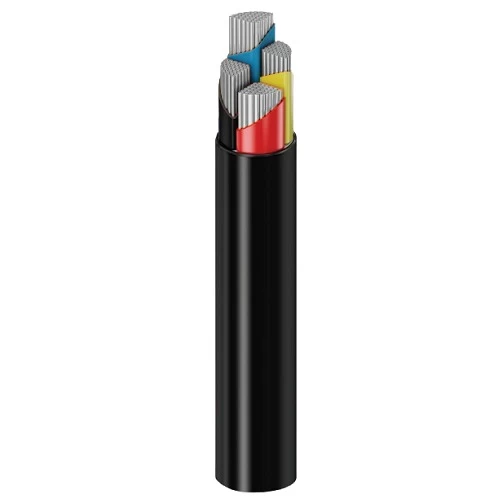

Four core aluminum cable, size 185mm2. The cable withstands high temperatures up to 90°C for extended periods without damage. Chloride-free, making it environmentally friendly. The LSZH sheath reduces smoke and toxic fumes in case of fire. Produced by Alfanar.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Aluminum electrical cable 4 core, produced by Alfanar  insulated and sheathed. The insulation offers flexibility and durability, making it suitable for a wide range of applications. It withstands high temperatures up to 90°C for extended periods without damage. The cable also endures harsh environmental conditions, such as moisture, corrosion, and chemicals. It is chloride-free, making it environmentally friendly. The outer sheath reduces smoke and toxic fumes in case of fire, making it suitable for use in fixed installations and sensitive areas like schools, hospitals, hotels, and shopping centers. Available in various shapes and sizes, with high quality and competitive prices to suit multiple needs.

  • Conductor Type: Aluminum
  • Conductor Shape: Stranded Circular (sm)
  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Outer Jacket: LSHF (Low Smoke Halogen Free)
  • Voltage: 600/1000 volts
  • Number of Cores: 4
  • Conductor Size (Cross-Sectional Area): 185 mm²
  • Max DC Conductor Resistance at 20°C: 0.1640 ohm/km
  • Max AC Conductor Resistance at 90°C: 0.2126 ohm/km
  • Current Rating Laid in Ground: 492 Ampere
  • Current Rating Laid in Ducts: 354 Ampere
  • Current Rating Laid in Free Air: 447 Ampere
  • Approx Overall Diameter: 43.1 mm
  • Weight: 2705 kg/km
  • Phase Core Colors: (Red, Yellow, Blue, Black)
  • Standard: IEC 60502-1
