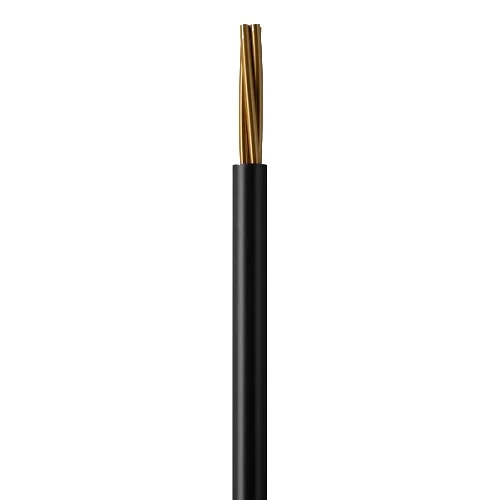

25mm Single Core Flexible Cable CU/PVC, 450/750 Rated Voltage, Black Color | Jeddah Cables

25mm Single Core Flexible Cable CU/PVC, 450/750 Rated Voltage, Black Color | Jeddah Cables

(1497 Product Views)

YouMats

Flexible single core cable (CU/PVC), 25mm2, 450/750 Rated Voltage, PVC insulated, providing effective protection against electrical leakage and corrosion, ensuring reliable performance and long lifespan. This wire is suitable for applications requiring reliable electrical connections in harsh industrial environments. Black color. Produced by Jeddah Cables.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Flexible copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. The insulation forms an exceptional protective layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.

  • Conductor: Flexible Copper
  • Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 25 mm²
  • Nominal Insulation Thickness: 1.2 mm
  • Approx Overall Diameter: 9.5 mm
  • Weight: 245 kg/km
  • Max DC Conductor Resistance at 20°C: 0.780 ohm/km
  • Current Rating Laid in Conduits: 103 Ampere
  • Current Rating Laid in Free Air: 152 Ampere
  • Color: Black
  • Standard: IEC 60227
