What colors are available for the 0.75mm wire?

The wire is available in red and other colors upon request to match various project needs.

Is the 0.75mm wire suitable for outdoor use?

Yes, the wire has excellent resistance to environmental factors and is suitable for outdoor installations.

What is the standard length of the wire roll?

The wire is available in standard rolls of 100 yards, which is approximately 91.4 meters.

Which company manufactures the 0.75mm wire?

The wire is manufactured by Asharqiyah Cables Company.

What is the voltage rating of this wire?

The wire has a voltage rating of 300/500 V, making it suitable for residential and commercial use.

Home
/
Electrical
/
Wires and cables
/
PVC Copper Wires
/
Flexible Copper Wires
/
0.75mm Wire 300/500V flexible Copper Wire Insulated (PVC 70°C) Red, 100 Yards | Asharqiyah Cables Company

0.75mm Wire 300/500V flexible Copper Wire Insulated (PVC 70°C) Red, 100 Yards | Asharqiyah Cables Company

(728 Product Views)

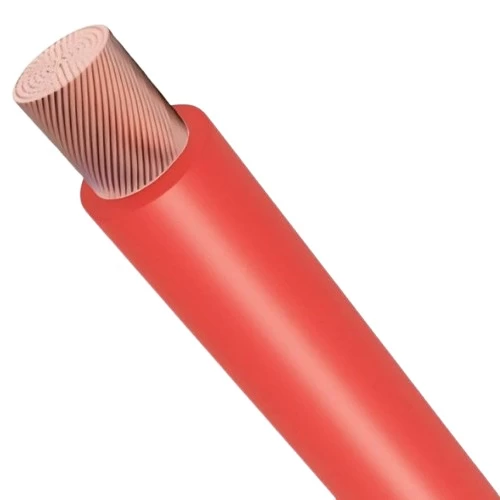

Flexible copper wire (CU/PVC) wire size 0.75mm insulated (PVC 70°C) , red, ideal for lighting fixtures and controls, 100 yards roll, produced by Eastern Cables Company, provides excellent protection against corrosion and environmental factors

in stock

Quantity

Call Now

🔗 Related Content

Alfanar Cable 4 mm Single Core, Str... Riyadh 14 AWG THHN Stranded Copper... Tie Wires Steel Wire Mesh Fence Size 2.5×... 0.75mm Wire 300/500V flexible Coppe... 0.75mm Flexible Copper Single Wire... 0.75mm Flexible Copper Wire 300/500... 0.75 mm Flexible Copper Single Wire...

Product description

Flexible copper electrical wire (CU/PVC), 0.75 mm2 cross section, 300/500 Volts, manufactured by Asharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (70°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations in a conduits, ducts or trunks or similar closed systems. It can be used in/on lighting fittings, switch and control devices, control panels, inside appliances and similar applications. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

Wire type: (H05V-K)
Size (cross-sectional area): 0.75 mm2
Maximum DC resistance (DC) at 20°C: ≤26.0 ohm/km
Overall diameter: 2.30 mm
Weight: 12 kg/km
Insulation color: red
Conductor: copper hair ( Class 5)
Insulation material: PVC (70°C)
Voltage: 300/500V Standard
length: 100 yards (91.4m) roll Insulation layer
thickness: 0.6mm
Conforming to international standards: IEC 60227-3, BS EN 50525-2-31

Additional Information▼

Technical Specifications & AWG Conversion

The 0.75mm electrical wire you need for control circuits actually matches 18 AWG standards. Here is the exact breakdown for your projects.

Specification	Value
Conductor Type	Class 5 Stranded Copper
Cross-Section	0.75 mm² (approx. 0.00116 sq in)
Voltage Rating	300/500 V
Insulation Material	PVC 70°C
Standard Length	100 yards (300 ft) per coil
Current Capacity	10–12 A (enclosed conduit, 30°C ambient)

Current carrying capacity drops fast in Saudi summers. We test these cables at 45°C+ ambient temperatures. You lose roughly 15% of capacity when running them in sealed conduits under direct sun. Keep derating in mind.

Stranded vs Solid Conductors & Market Pricing

Stranded wire bends without breaking. Solid wire holds shape but snaps under vibration. The 0.75mm² copper wire we stock uses Class 5 stranding. This makes it perfect for control panels and lighting fixtures that need frequent handling. Solid equivalents break after three bends. Don’t risk it.

Pricing for 0.75mm wire in Saudi Arabia typically runs between 0.40 to 0.65 SAR per meter when bought individually. Rolls of 100 yards cost 110–140 SAR depending on the supplier. You’ll find certified stock in Riyadh, Jeddah, and Dammam warehouses. Always check for the SASO mark before bulk orders. Store coils away from direct sunlight. Heat degrades PVC over time.

Installation & Safety Guidelines

Proper termination prevents heat buildup. Crimp ferrules work best with Class 5 stranded copper. Torque terminal screws to 0.5 Nm maximum. Over-tightening cuts the strands. Run these wires in PVC conduits or trunking. Direct burial or outdoor exposure requires UV-rated jackets. Our PVC insulation handles Saudi humidity and sand storms without cracking. SABER certification is mandatory for 2026 imports. Verify the test report matches your batch number.

Lighting circuits use 0.75mm². Switch loops and small control devices run on this gauge. 1.5mm² handles general power outlets. 2.5mm² covers heavy appliances and main feeds. Picking the wrong size causes voltage drop. Your 0.75 sq mm wire stays cool and flexible. It resists cracking in coastal humidity and industrial heat. Compare brands carefully. Asharqiyah Cables meets IEC 60227-3 standards for consistent performance.

Every coil undergoes resistance testing before dispatch. We measure DC resistance at exactly 20°C using calibrated bridge meters. Values must stay at or below 26.0 Ω/km. Insulation thickness measures 0.6mm minimum. We reject batches with uneven extrusion. Visual defects matter. Check for bubbles or rough edges. Proper storage prevents moisture absorption. Keep rolls on wooden pallets. Avoid concrete floors in humid months.
