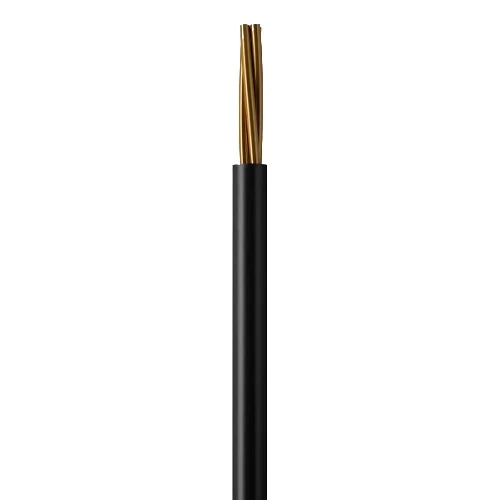

95mm Single Core Flexible Cable CU/PVC, 450/750 Rated Voltage, Black Color | Jeddah Cables
(989 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Flexible single core cable (CU/PVC), 95mm2, 450/750 Rated Voltage, PVC insulated, providing effective protection against harsh environmental conditions and ensuring the safety of electrical devices. This wire is capable of handling large electrical loads, making it suitable for industrial applications that require high performance. Black color. Produced by Jeddah Cables.
Product description
Flexible copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. The insulation forms an exceptional protective layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor: Flexible Copper
- Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 95 mm²
- Nominal Insulation Thickness: 1.6 mm
- Approx Overall Diameter: 17.3 mm
- Weight: 925 kg/km
- Max DC Conductor Resistance at 20°C: 0.206 ohm/km
- Current Rating Laid in Conduits: 239 Ampere
- Current Rating Laid in Free Air: 350 Ampere
- Color: Black
- Standard: IEC 60227
