Bahra 4x500sq mm 0.6/1kV Cable, CU/XLPE/PVC, Stranded Copper Wire, 300 meter
(627 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

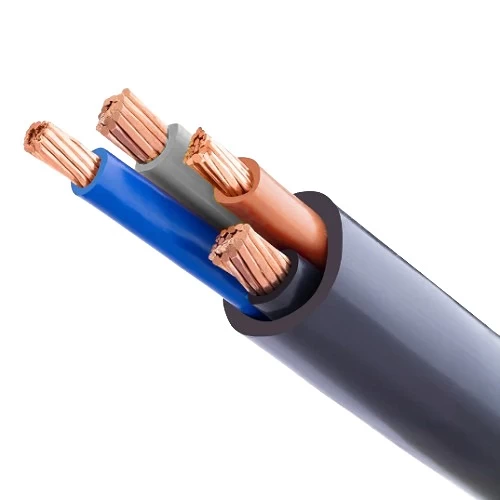

Unarmored stranded copper power cable (CU/XLPE/PVC), 4 core, 500mm2 size conductor, 0.6/1kV, Designed with the highest safety standards, it features a high-quality PVC cover that resists heat and flame, reducing the risk of fire. Color (Blue, Brown, Black, Grey), manufactured by Bahra Cables Company.
Product description
Unarmored stranded copper power cable (CU/XLPE/PVC), Produced by BAHRA Cables Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 500 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 2.2 mm
- Nominal Sheath Thickness: 3.5 mm
- Approx Overall Diameter: 73.1 mm
- Weight: 19716 kg/km
- Standard Length: 300 meters
- Phase Core Colors: (Blue, brown, black, grey)
- Standard: BS 6724
