Bahra 4x300mm 0.6/1kV Power Cable, CU/PVC/PVC, Stranded Copper Wire, 250 m
(829 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

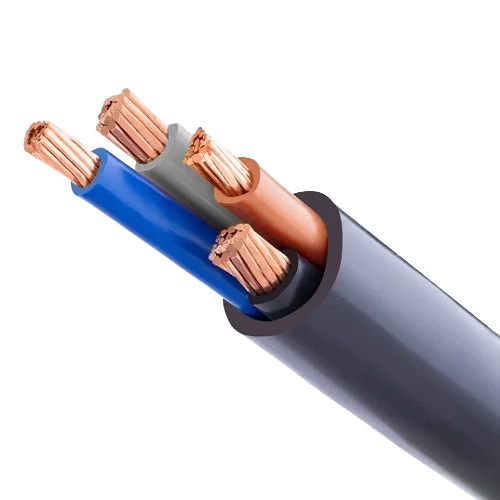

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 300mm2 size conductor, Low Voltage 0.6/1kV, The cable ensures efficient transmission of electrical energy without significant losses. Insulation color (blue, brown, black, gray), manufactured by Bahra Cables Company.
Product description
Stranded copper power unarmored cable (CU/PVC/PVC), Produced by BAHRA Cables Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 300 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 2.4 mm
- Nominal Sheath Thickness: 3.1 mm
- Approx Overall Diameter: 62.3 mm
- Weight: 12891 kg/km
- Standard Packaging Cable: 250 meters
- Phase Core Colors: (blue, brown, black, gray)
- Standard: BS 6724
