95mm 4 Core Cable Stranded Copper 600/1000 V, PVC Insulated | Riyadh Cables
(3861 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

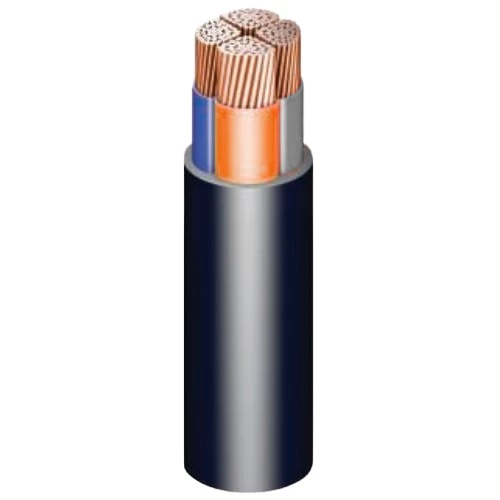

Four core electrical stranded copper cable (CU/PVC/PVC), used in electrical distribution panels, in applications where there is a risk of mechanical damage, Size 95×4 mm2, produced by Riyadh Cables Company.
Product description
Four core electrical stranded copper cable (CU/PVC/PVC), Produced by Riyadh Cables Company. According with IEC 60502-1 (International Electrotechnical Commission) standard. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Wire Type: Sectoral Stranded (sm)
- Number of Cores: 4 Core
- Size (cross-sectional area) : 95 mm2
- Number of wires : 15
- Thickness of first insulation layer : 1.6 mm
- Thickness of outer jacket layer : 2.2 mm
- Approx overall diameter : 41 mm
- Weight : 4425 kg/km
- Length : 500 meters
- Phase Core Color: Blue, Brown, Black, Gray
- Conformity According to International Standard: IEC 60502-1
