CU/PVC/PVC Stranded Copper Electric Cable, Four Core, 70mm, 0.6/1kV, 500 meter | Red Sea Cables
(791 Product Views)

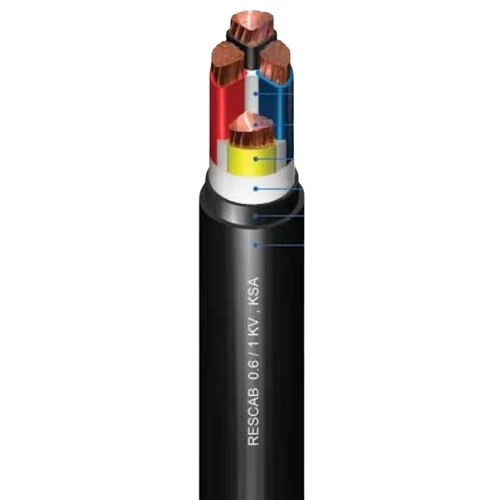

Stranded Copper Electric Cable (CU/PVC/PVC), 70 sq mm, 4 Core, 0.6/1 kV, produced by Red Sea Cables. Designed to withstand high heat and moisture, making it ideal for use in harsh environments.
Product description
Stranded copper power cable (CU/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 70 mm2
- Number of wires: 19
- Nominal Insulation Thickness: 1.4 mm
- Nominal Sheath Thickness: 2.1 mm
- Approx Overall Diameter: 37 mm
- Max DC Conductor Resistance at 20°C: 0.268 ohm/km
- Weight: 3400 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue, Black
- Standard: IEC 60502-1
