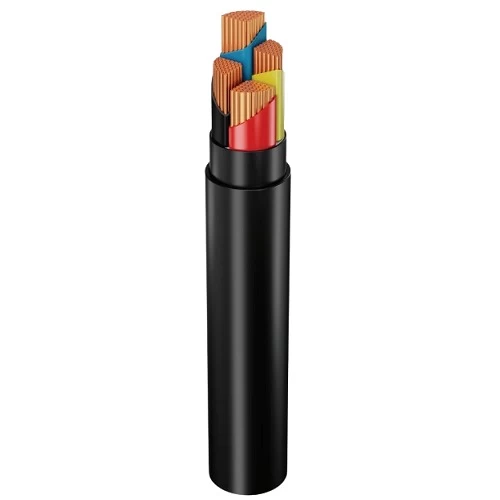

3.5 core stranded copper power cable (CU/PVC/PVC/PVC), According to the International Electrotechnical Commission (IEC 60502-1) standard. Available in a variety of sizes and colors with the highest quality and best prices, produced by Al Fanar Company, size 3×240+120 mm2.
Product description
3.5 core stranded copper power cable (CU/PVC/PVC/PVC), Produced by Al Fanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage.
- Conductor Type: Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Jacket: Double PVC
- Voltage: 600/1000 volts
- Conductor Shape: Sectoral Stranded (sm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): (3×240)+120 mm2
- Max DC Conductor Resistance at 20°C: 0.0754 / 0.1530 ohm/km
- Max AC Conductor Resistance at 70°C: 0.0952 / 0.1856
ohm/km - Current Rating Laid in Ground: 338 Ampere
- Current Rating Laid In Ducts: 272 Ampere
- Current Rating Laid in Free Air: 370 Ampere
- Approx Overall Diameter: 56 mm
- Weight: 9510 kg/km
- Phase Core Color: (red, yellow, blue, black)
- Standard: IEC 60502-1
