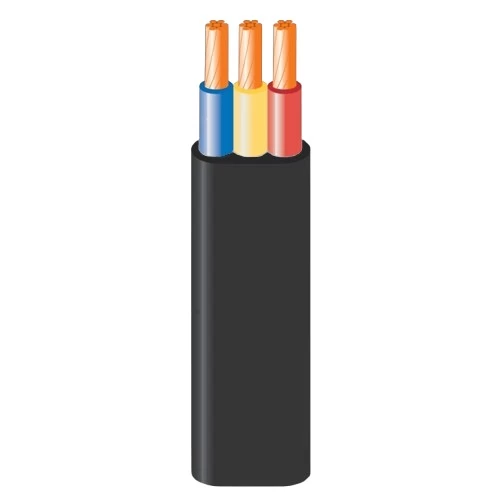

Three Core 4mm Stranded Copper Cable 300/500V, PVC 70°C Insulation, Black Color, 50 meter Length | Saudi Cable Company
(426 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded copper flat cable, 3-core, 2.5mm²(CU/PVC/PVC), insulated up to 70°C with a black PVC sheath, protecting the cable from harsh environmental factors, ensuring flexibility for installation in outdoor areas. Supplied in 50-meter rolls. Produced by Saudi Cable Company.
Product description
Stranded copper electrical flat cable (CU/PVC/PVC), low voltage 300/500V. Produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. These cables are suitable for operation at voltages up to and including 300 Vrms to earth and 500 Vrms between conductors. Typical applications include indoor and outdoor wiring of residential and commercial buildings, warehouses and shops. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 4mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 0.8 mm
- Nominal Sheath Thickness: 1.1 mm
- Overall Diameter: 16.5x7.4 mm
- Weight: 216 kg/km
- Length: 50 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBF3-06H
