3x300+150mm Stranded Copper Cable, 0.6/1kV, PVC Insulated | Al Fanar
(1063 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

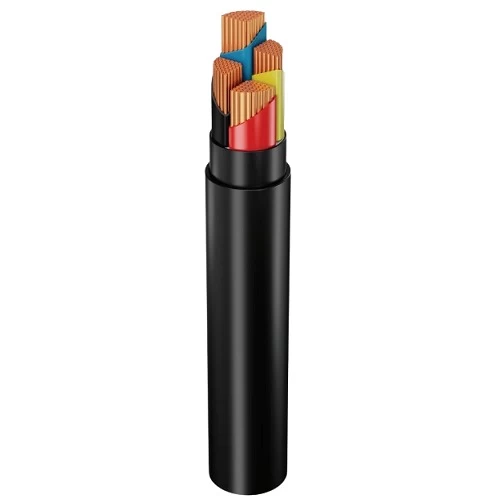

3.5 core stranded copper power cable (CU/PVC/PVC/PVC), Low voltage 600/1000V, PVC cables are durable, economical and reliable in performance, produced by Al Fanar Company, size 3×300+150 mm2.
Product description
3.5 core stranded copper power cable (CU/PVC/PVC/PVC), Produced by Al Fanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage.
- Conductor Type: Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Jacket: Double PVC
- Voltage: 600/1000 volts
- Conductor Shape: Sectoral Stranded (sm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): (3×300)+150 mm2
- Max DC Conductor Resistance at 20°C: 0.0601 / 0.1240 ohm/km
- Max AC Conductor Resistance at 70°C: 0.0780 / 0.1514
ohm/km - Current Rating Laid in Ground: 381 Ampere
- Current Rating Laid In Ducts: 310 Ampere
- Current Rating Laid in Free Air: 426 Ampere
- Approx Overall Diameter: 61.8 mm
- Weight: 11800 kg/km
- Phase Core Color: (red, yellow, blue, black)
- Standard: IEC 60502-1
