95mm 0.6/1kV, 4Core Cable, Stranded Copper Conductor, PVC Insulated, SWA Armored, Length 500 meter | RESCAB
(914 Product Views)

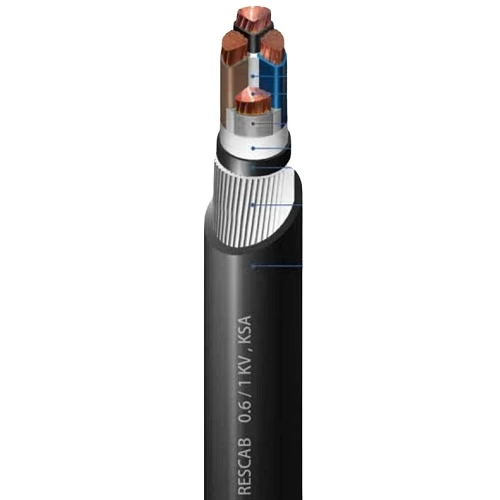

Armed stranded copper cable (CU/PVC/SWA/PVC), four core, 95mm2 size conductor, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, the outer sheath provides additional protection for the cable and is highly resistant to water and moisture.
Product description
Armoured stranded copper power cable (CU/PVC/SWA/PVC), produced by Red Sea Cables (RESCAB) Company according to British standard (BS 5467). Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 95 mm2
- Number of Wires: 19
- Nominal Insulation Thickness: 1.6 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 2.5 mm
- Approx Overall Diameter: 48 mm
- Max DC Conductor Resistance at 20°C: 0.193 ohm/km
- Weight: 6530 kg/km
- Standard Length: 500 meters
- Phase Core Color: Blue, Brown, Black, Grey
- Standard: BS 5467, 6346 Latest
