400sq mm Four Core 0.6/1kV Electrical Cable, Stranded Copper, PVC Insulated, SWA Armored, 250 meter/Drum | BAHRA
(898 Product Views)

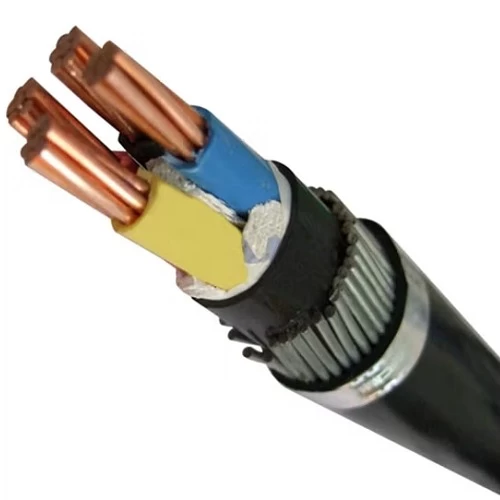

Electrical Cable (CU/PVC/SWA/PVC), 4 Core 400mm 0.6/1kV, Stranded Copper, PVC Insulated, Armoured with Galvanized Steel, 250-meter Length, designed to withstand high electrical and environmental pressures. this cable is the perfect choice for powering large-scale projects such as power stations and massive factories due to its high endurance. Produced by BAHRA Cables Company.
Product description
Armored stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 400 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 2.6 mm
- Nominal Steel Wire Diameter: 3.15 mm
- Nominal Sheath Thickness: 3.6mm
- Approx Overall Diameter: 79.1 mm
- Weight: 21284 kg/km
- Standard Packaging Cable: 250 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
