400 sq mm Four Core 0.6/1kV Cable, Stranded Copper, PVC Insulation, SWA Armoured, 250 meter/Drum | BAHRA
(1053 Product Views)

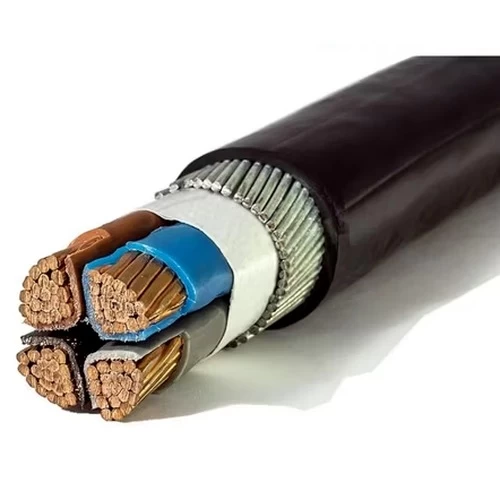

Cable, 4 Core, 400mm 0.6/1kV, 250 meter length, High-purity Stranded Copper, PVC Insulated, and Armoured for high electrical loads. Ideal for large-scale energy projects, Produced by BAHRA Cables Company.
Product description
Armored stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 400 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 2.6 mm
- Nominal Steel Wire Diameter: 3.15 mm
- Nominal Sheath Thickness: 3.6mm
- Approx Overall Diameter: 79.1 mm
- Weight: 21284 kg/km
- Standard Packaging Cable: 250 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467
