300sq mm Four Core 0.6/1kV Electric Cable, Stranded Copper, PVC Insulation, SWA Armoured, 250 meter/Drum | BAHRA
(1683 Product Views)
Electrical Cable (CU/PVC/SWA/PVC), 4 Core 300mm 0.6/1kV, Stranded Copper, PVC Insulated, 250-meter Length, Armoured with Galvanized Steel, this cable is highly efficient for long-distance electrical transmission, making it perfect for major projects such as power plants. Produced by BAHRA Cables Company.
Product description

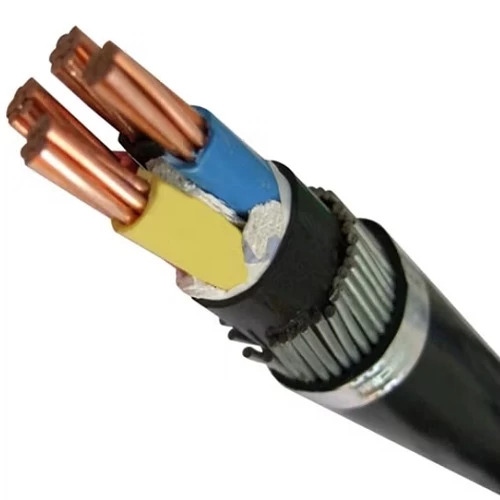

Armored stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 300 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 2.4 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 3.3mm
- Approx Overall Diameter: 70.9 mm
- Weight: 16363 kg/km
- Standard Packaging Cable: 250 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
