Solid Copper Electricity Cable 4 Core 4mm 0.6/1 kV, SWA Armored, PVC Insulated | Riyadh Cables
(956 Product Views)

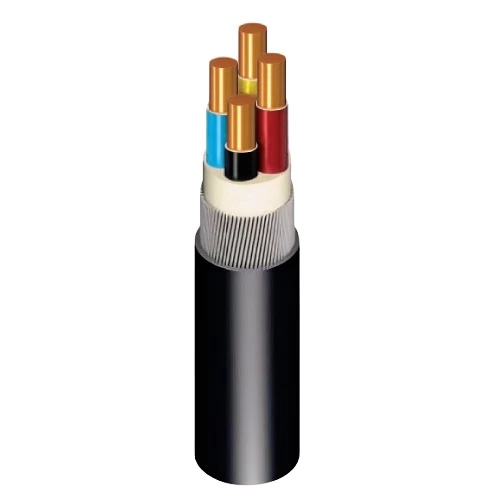

Four core armored power cable (CU/PVC/SWA/PVC), solid copper conductor, According to the International Electrotechnical Commission (IEC 60502-1) standard. Armed with steel wire layer (SWA) to give it mechanical rigidity that protects it from external stresses applied to the cable, produced by Riyadh Cables Company, Size 4 mm2.
Product description
Four core armored power cable (CU/PVC/SWA/PVC), solid copper conductor, Produced by Riyadh Cables Company. according to (International Electrotechnical Commission) standard. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage : 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: 4 Core
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 2.25 mm
- Nominal Insulation Thickness: 1 mm
- Armoring: SWA (Steel Wire Armor)
- Nominal Steel Wire Diameter: 1.25 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 19 mm
- Weight: 790 kg/km
- Length : 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
