3.5 Core 3x120+70mm2 Cable, Stranded Aluminium, PVC Insulated and Sheathed, 0.6/1kV, 500 M Length | Red Sea Cables
(572 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

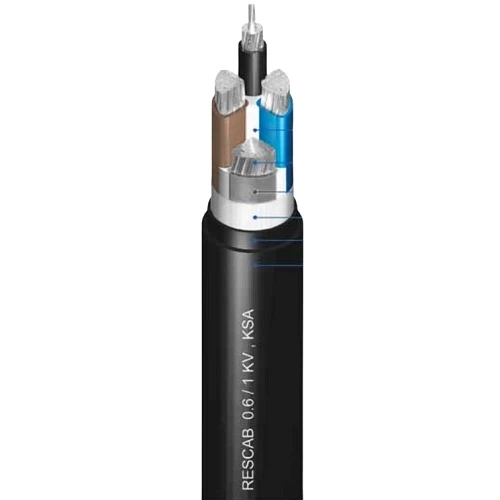

Unarmored stranded aluminium power cable (AL/PVC/PVC), 3 core + neutral line, 3x120+70mm2 size conductor, 0.6/1kV, phase core color is blue, brown, black, grey, produced by Red Sea Cables (RESCAB) company, sheathed with PVC layer forms excellent insulation, available in different shapes, sizes standard length is 500 meters.
Product description
Unarmored stranded aluminium power cable (AL/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx120 mm2 ) + 70mm2
- Number of Phase Wires: 37
- Number of Neutral Wires: 19
- Nominal Insulation Thickness of Phase: 1.6 mm
- Nominal Insulation Thickness of Neutral: 1.4 mm
- Nominal Sheath Thickness: 2.3 mm
- Approx Overall Diameter: 44 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.253 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.443 ohm/km
- Weight: 2425 kg/km
- Standard Length: 500 meters
- Phase Core Color: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346 Latest
