Aluminum Cable 150 mm 3 Core Stranded, 600/1000V, PVC Insulated | Riyadh Cables
(1499 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

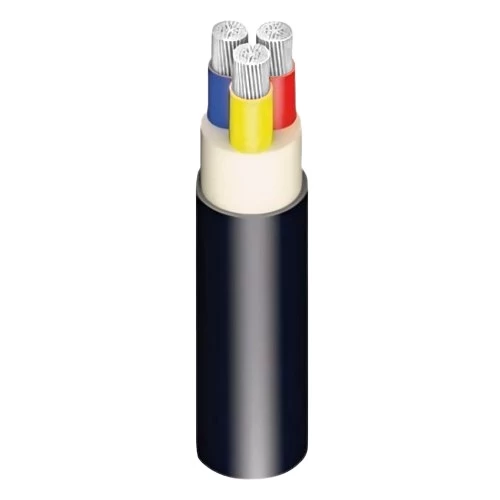

Aluminum cable 3 core stranded, PVC insulated, size 3×150 mm2, nominal insulation thickness 1.8 mm, approx overall diameter 49 mm, it is used to conduct electrical current in various domestic, commercial and industrial applications, such as lighting equipment, central air conditioners, (red, yellow, blue) color, produced by Riyadh Cables Company.
Product description
Stranded 3 core electrical aluminium cable (AL/PVC/PVC), produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Stranded (rm)
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 150 mm2
- Number of Wires: 37
- Approx Conductor Diameter: 15.47 mm
- Nominal Insulation Thickness: 1.8 mm
- Nominal Sheath Thickness: 2.3 mm
- Approx Overall Diameter: 49 mm
- Weight: 2775 kg/km
- Cable Length: 500 meters
- Phase Core Color: (Red, Yellow, Blue)
- Standard: IEC 60502-1
