3.5 Core 3x70 +35 sq mm2 Cable, Stranded Aluminium, PVC Insulated and Sheathed, 0.6/1kV, 500 m | Red Sea Cables
(929 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

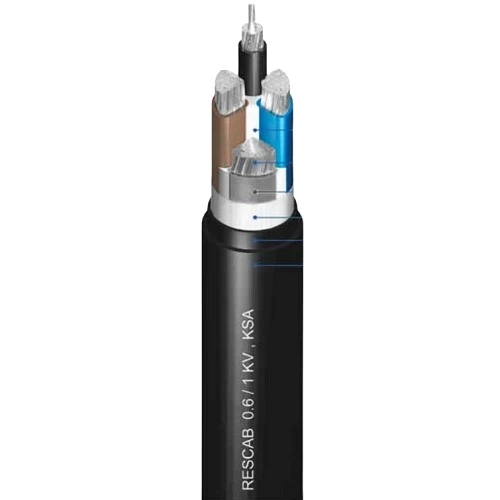

Unarmored stranded aluminium power cable (AL/PVC/PVC), 3 core + neutral line, 3x70+35mm2 size conductor, 0.6/1kV, produced by Red Sea Cables (RESCAB) company, standard length is 500 meters, offers an combination of properties that make it the ideal choice for a range of power and energy transmission applications.
Product description
Unarmored stranded aluminium power cable (AL/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx70 mm2 ) + 35mm2
- Number of Phase Wires: 19
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.4 mm
- Nominal Insulation Thickness of Neutral: 1.2 mm
- Nominal Sheath Thickness: 2.0 mm
- Approx Overall Diameter: 36 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.443 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.868 ohm/km
- Weight: 1510 kg/km
- Standard Length: 500 meters
- Phase Core Color: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346 Latest
Additional Information▼
Benefits of Bundled Aluminum Cables
Bundled aluminum cables are characterized by strength and durability, with the ability to adapt to stressful external conditions such as exposure to intense sunlight or high humidity. Their use indoors and outdoors enhances their efficiency and reliability in various environments.
Guidelines for Choosing the Right Cable Size
When selecting the appropriate cable, it is important to consider several factors such as cable length, type of insulation, and installation conditions. 3×70+35 aluminum cables can effectively meet diverse power transmission needs at a reasonable cost.
