CU/ZHLS Stranded Electrical Wire, 185mm2, 450/750V, Red Color, 1000 meter/Drum | RESCAB
(573 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

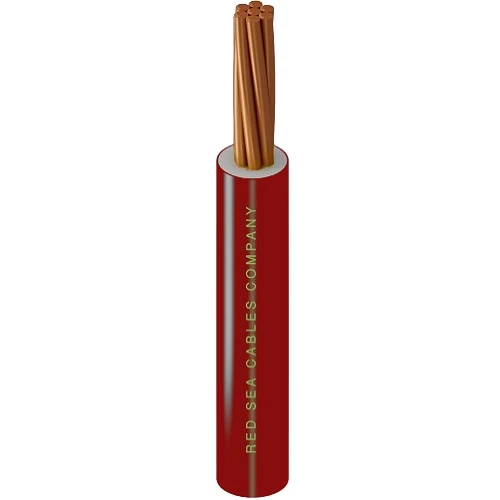

Stranded electrical copper wire (CU/ZHLS), 185mm2 size, 450/750 volts, It offers excellent value for money and is manufactured to the highest quality standards to ensure optimum performance. It is available in different shapes and sizes to meet different needs. Red color, from Red Sea Cables.
Product description
Stranded electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 185 mm2
- Nominal Insulation Thickness: 2.0 mm
- Approx Overall Diameter: 20.0 mm
- Max DC Conductor Resistance at 20ยฐC: 0.0991 ohm/km
- Insulation Color: Red
- Standard Length: 1000 meter/Drum
- Standard: BS EN 50525-3-41
