CU/LSHF Flexible Copper Wire, 25mm2, 450/750V, Red Color, Coil Length 100 Yards | RESCAB

CU/LSHF Flexible Copper Wire, 25mm2, 450/750V, Red Color, Coil Length 100 Yards | RESCAB

(1026 Product Views)

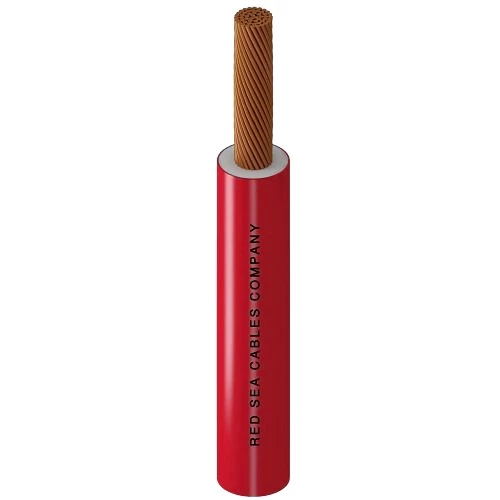

Flexible electrical copper wire (CU/LSHF), 25mm2 size, 450/750 volts, Red color, characterized by high durability and superior ability to withstand harsh environmental conditions, making it ideal for use in difficult environments, Red Sea cables.

in stock

Quantity

Call Now

🔗 Related Content

PVC Coated Flexible Conduit, Size 4... Liquid Tight Flexible Conduit, Size... Riyadh 6 AWG THHN Stranded Copper A... 4mm 450/750 Volt Solid Copper Wire,... 12x1.5mm 0.6/1kV Stranded Copper Co... CU/LSHF Flexible Copper Wire, 25mm2... CU/LS0H Flexible Copper Wire, 4mm2,... CU/LSHF Flexible Copper Wire, 25mm2...

Product description

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 25 mm2
Nominal Insulation Thickness: 1.2 mm
Approx Overall Diameter: 8.6 mm
Max DC Conductor Resistance at 20°C: 0.780 ohm/km
Standard Length: 100 Yards (91.4 meter) / Coils
Insulation Color: Red
Standard: BS EN 50525-3-41
