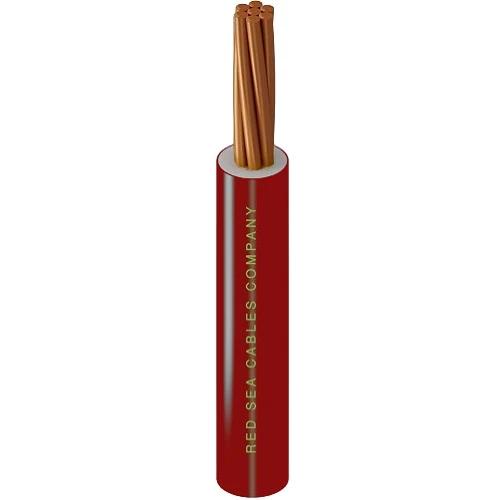

CU/ZHLS Stranded Wire, 10mm2, 450/750V, Red Color, 100 Yards | RESCAB
(480 Product Views)
Stranded copper wire (CU/ZHLS), 10mm2 size, 450/750 volts, From Red Sea Cables, ideal for use in schools, hospitals, hotels, shopping malls, subways, where people's safety is a priority, red color.
Product description
Stranded electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm2
- Nominal Insulation Thickness: 1.0 mm
- Approx Overall Diameter: 5.7 mm
- Max DC Conductor Resistance at 20ยฐC: 1.83 ohm/km
- Insulation Color: Red
- Standard Length: 100 Yards (91.4 meter) / Plastic Reels
- Standard: BS EN 50525-3-41
