CU/LSHF Flexible Copper Electrical Wire, 240mm2, 450/750V, Green/Yellow Color, 1000 m | RESCAB

CU/LSHF Flexible Copper Electrical Wire, 240mm2, 450/750V, Green/Yellow Color, 1000 m | RESCAB

(885 Product Views)

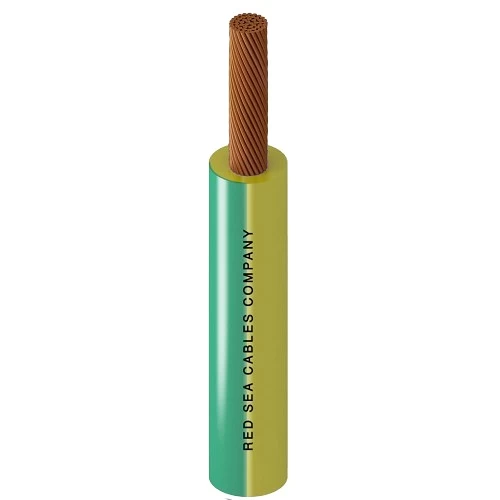

Flexible copper wire (CU/LSHF), 240mm2 size, 450/750 volts, These cables are highly flexible and easy to install, making them ideal for use in dry locations. They come in a variety of colors and sizes upon request, from Red Sea Cables, green/yellow.

in stock

Quantity

Call Now

🔗 Related Content

PVC Coated Flexible Conduit, Size 4... Liquid Tight Flexible Conduit, Size... Riyadh 6 AWG THHN Stranded Copper A... 4mm 450/750 Volt Solid Copper Wire,... 12x1.5mm 0.6/1kV Stranded Copper Co... CU/LSHF Flexible Copper Electrical... CU/LSHF Flexible Copper Electrical... CU/LSHF Flexible Copper Wire, 35mm2...

Product description

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 240 mm2
Nominal Insulation Thickness: 2.2 mm
Approx Overall Diameter: 24.7 mm
Max DC Conductor Resistance at 20°C: 0.0801 ohm/km
Standard Length: 1000 meter/Drum
Insulation Color: Green/Yellow
Standard: BS EN 50525-3-41
