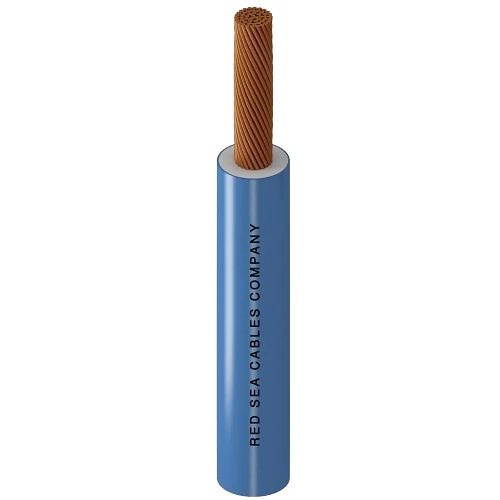

CU/0HLS Flexible Copper Electrical Wire, 240mm2, 450/750V, blue Color, 1000 meter/Drum | RESCAB

CU/0HLS Flexible Copper Electrical Wire, 240mm2, 450/750V, blue Color, 1000 meter/Drum | RESCAB

(933 Product Views)

Flexible copper wire (CU/LSHF), 240mm2 size, 450/750 volts, It has high flexibility in bending, which facilitates the installation process in narrow spaces and curves, to ensure excellent electrical conductivity and reduce energy loss, blue color, Red Sea Cables.

in stock

Quantity

Call Now

🔗 Related Content

PVC Coated Flexible Conduit, Size 4... Liquid Tight Flexible Conduit, Size... Riyadh 6 AWG THHN Stranded Copper A... 4mm 450/750 Volt Solid Copper Wire,... 12x1.5mm 0.6/1kV Stranded Copper Co... CU/0HLS Flexible Copper Electrical... CU/0HLS Flexible Copper Electrical... CU/0HLS Flexible Copper Electrical...

Product description

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 240 mm2
Nominal Insulation Thickness: 2.2 mm
Approx Overall Diameter: 24.7 mm
Max DC Conductor Resistance at 20°C: 0.0801 ohm/km
Standard Length: 1000 meter/Drum
Insulation Color: blue
Standard: BS EN 50525-3-41
