CU/0HLS Flexible Copper Wire, 50mm2, 450/750V, White Color, 1000 m | RESCAB
(809 Product Views)

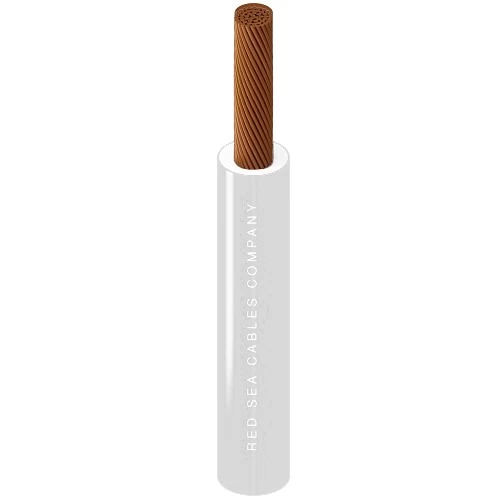

Flexible copper wire (CU/LSHF), 50mm2 size, 450/750 volts, Compatible with all types of connectors and electrical equipment, making installation easy, Red Sea Cables, White Color.
Product description
Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-K
- Conductor: Flexible Copper (Class 5)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Max. Temperature: +90ยฐC
- Conductor Size (Cross-Sectional Area): 50 mm2
- Nominal Insulation Thickness: 1.4 mm
- Approx Overall Diameter: 12 mm
- Max DC Conductor Resistance at 20ยฐC: 0.386 ohm/km
- Standard Length: 1000 meter/Drum
- Insulation Color: White
- Standard: BS EN 50525-3-41
