CU/LS0H Flexible Copper Wire, 150mm2, 450/750V, Black Color, 1000 meter Length | RESCAB
(409 Product Views)
Flexible electrical copper wire (CU/LSHF), 150mm2 size, 450/750 volts, It contributes to reducing project costs thanks to its ease of installation, making it an effective economic solution that saves time and costs, without compromising on quality, black color, Red Sea cables.
Product description

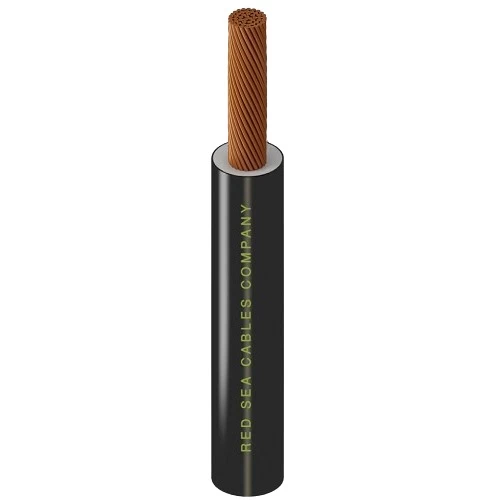

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-K
- Conductor: Flexible Copper (Class 5)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Max. Temperature: +90°C
- Conductor Size (Cross-Sectional Area): 150 mm2
- Nominal Insulation Thickness: 1.8 mm
- Approx Overall Diameter: 19.7 mm
- Max DC Conductor Resistance at 20°C: 0.129 ohm/km
- Standard Length: 1000 meter/Drum
- Insulation Color: Black
- Standard: BS EN 50525-3-41
