CU/LSHF Flexible Copper Wire, 95mm2, 450/750V, Black Color, 1000 meter Length | RESCAB

CU/LSHF Flexible Copper Wire, 95mm2, 450/750V, Black Color, 1000 meter Length | RESCAB

(878 Product Views)

Flexible electrical copper wire (CU/LSHF), 95mm2 size, 450/750 volts, Black Color, Red Sea Cables, These cables are among the first cables to meet the latest global safety regulations, reflecting our commitment to quality and innovation.

in stock

Quantity

Call Now

🔗 Related Content

PVC Coated Flexible Conduit, Size 4... Liquid Tight Flexible Conduit, Size... Riyadh 6 AWG THHN Stranded Copper A... 4mm 450/750 Volt Solid Copper Wire,... 12x1.5mm 0.6/1kV Stranded Copper Co... CU/LSHF Flexible Copper Wire, 95mm2... CU/LSHF Flexible Copper Wire, 16mm2... CU/LSHF Flexible Copper Electrical...

Product description

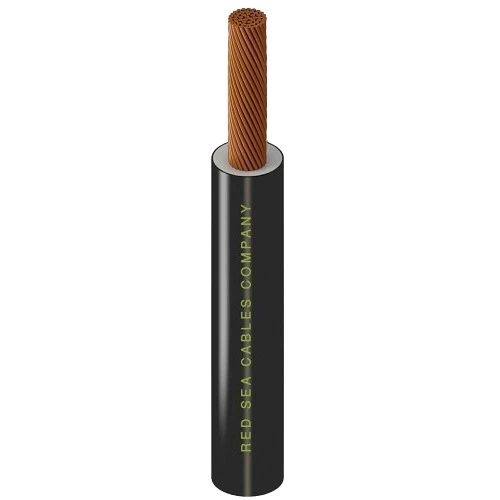

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 95 mm2
Nominal Insulation Thickness: 1.6 mm
Approx Overall Diameter: 15.9 mm
Max DC Conductor Resistance at 20°C: 0.206 ohm/km
Standard Length: 1000 meter/Drum
Insulation Color: Black
Standard: BS EN 50525-3-41
