1.5mm Stranded Copper Wire, 450/750 Voltage Rating, LSHF Insulated | Alfanar
(958 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

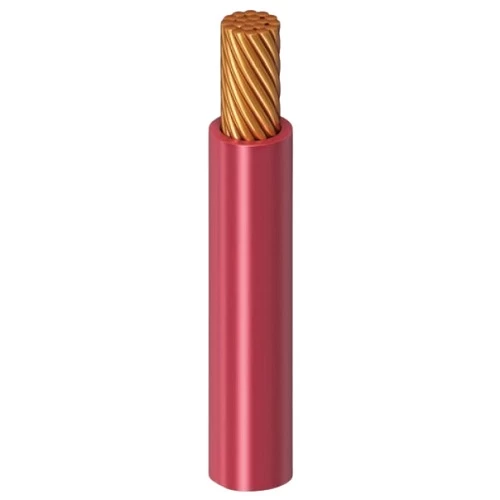

1.5mm 450/750V stranded copper electric wire, LSHF insulated, phase core color is red, produced by Alfanar Company, use in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc.
Product description
Stranded electrical wire (CU/LSHF), produced by Alfanar Company according to BS 7211 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks for use in/on lighting fittings, switch and control devices, control panels and similar applications, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 1.5 mm
- Max DC Conductor Resistance at 20°C: 12.1000 ohm/km
- Max AC Conductor Resistance at 90°C: 15.4287 ohm/km
- Approx Overall Diameter: 3 mm
- Weight: 25 kg/km
- Color: Red
- Standard: BS 7211
