CU/LSHF Stranded Wire, 95 mm2, 450/750V, white Color, 2000 meters | RESCAB
(552 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

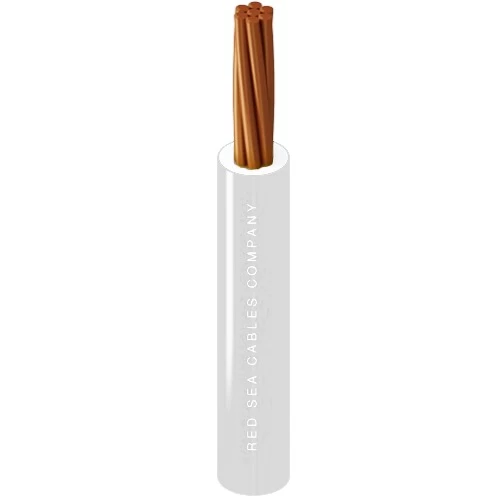

Stranded copper electrical wire (CU/LSHF) with a size of 95 mm² and a voltage of 450/750 volts, produced by Red Sea Cables, features halogen-free insulation, making it a safe choice for use in sensitive environments that require strict standards.
Product description
Stranded electrical copper wire (CU/LSHF), produced by Red Sea Cables Company according to BS EN 50525-3-41 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 95 mm2
- Nominal Insulation Thickness: 1.6 mm
- Approx Overall Diameter: 14.6 mm
- Max DC Conductor Resistance at 20°C: 0.193 ohm/km
- Insulation Color: white
- Standard Length: 2000 meter / Plastic Reels
- Standard: BS EN 50525-3-41
