CU/0HLS Flexible Copper Electrical Wire, 150mm2, 450/750V, White Color, 1000 meter/Drum | RESCAB

CU/0HLS Flexible Copper Electrical Wire, 150mm2, 450/750V, White Color, 1000 meter/Drum | RESCAB

(676 Product Views)

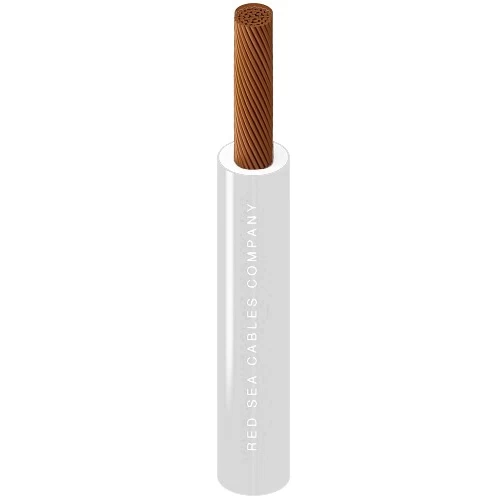

Flexible copper wire (CU/LSHF), 150mm2 size, 450/750 volts, From Red Sea Cables, ensuring a safe and risk-free working environment, as it is highly flexible, making it ideal for use in dry places that require ease of installation, white color.

in stock

Quantity

Call Now

🔗 Related Content

PVC Coated Flexible Conduit, Size 4... Liquid Tight Flexible Conduit, Size... Riyadh 6 AWG THHN Stranded Copper A... 4mm 450/750 Volt Solid Copper Wire,... 12x1.5mm 0.6/1kV Stranded Copper Co... CU/0HLS Flexible Copper Electrical... CU/0HLS Flexible Copper Electrical... CU/0HLS Flexible Copper Wire, 50mm2...

Product description

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 150 mm2
Nominal Insulation Thickness: 1.8 mm
Approx Overall Diameter: 19.7 mm
Max DC Conductor Resistance at 20°C: 0.129 ohm/km
Standard Length: 1000 meter/Drum
Insulation Color: White
Standard: BS EN 50525-3-41
