CU/LSHF Stranded Wire, 185 mm2, 450/750V, black Color, 1000 meters | RESCAB
(620 Product Views)

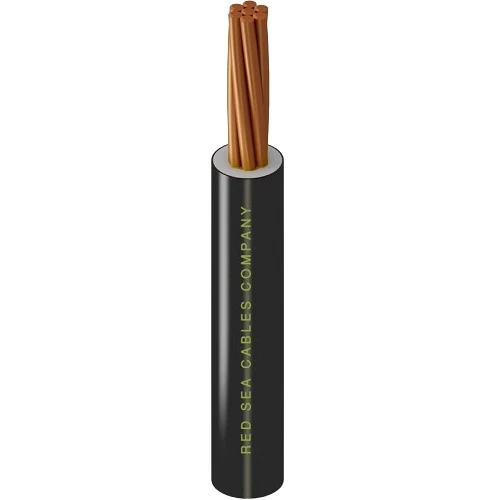

Stranded copper wire (CU/LSHF) from Red Sea Cables, with a size of 185 mm² and a voltage of 450/750 volts, is specially designed to reduce smoke and toxic fumes in case of fire.
Product description
Stranded electrical copper wire (CU/LSHF), produced by Red Sea Cables Company according to BS EN 50525-3-41 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 185 mm2
- Nominal Insulation Thickness: 2.0 mm
- Approx Overall Diameter: 20.0 mm
- Max DC Conductor Resistance at 20°C: 0.0991 ohm/km
- Insulation Color: black
- Standard Length: 1000 meter / Plastic Reels
- Standard: BS EN 50525-3-41
