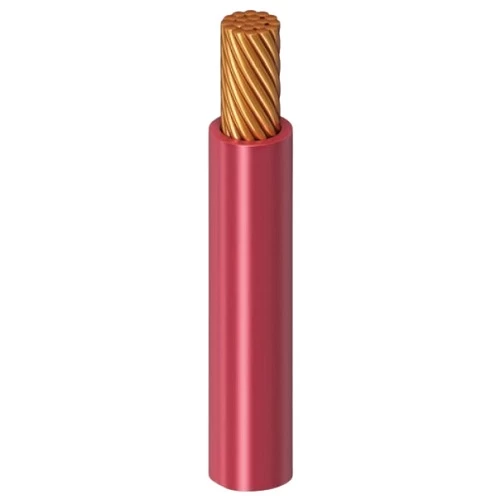

10mm 450/750V Solid Copper Electric Wire, LSHF Insulated | Alfanar

10mm 450/750V Solid Copper Electric Wire, LSHF Insulated | Alfanar

(782 Product Views)

YouMats

Solid electrical copper wire (CU/LSHF), 10mm2 size, 450/750 volts, phase core color is red, minimizes smoke and toxic fumes in case of fire, therefore, it is suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, produced by Alfanar Company.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Solid electrical wire (CU/LSHF), produced by Alfanar Company according to BS 7211 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks for use in/on lighting fittings, switch and control devices, control panels and similar applications, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Conductor Type: Copper
  • Conductor Shape: Solid
  • Insulation Material: LSHF (Low Smoke Halogen Free)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 10 mm
  • Max DC Conductor Resistance at 20°C: 1.8300 ohm/km
  • Max AC Conductor Resistance at 90°C: 2.3336 ohm/km
  • Approx Overall Diameter: 5.6 mm
  • Weight: 110 kg/km
  • Color: Red
  • Standard: BS 7211
