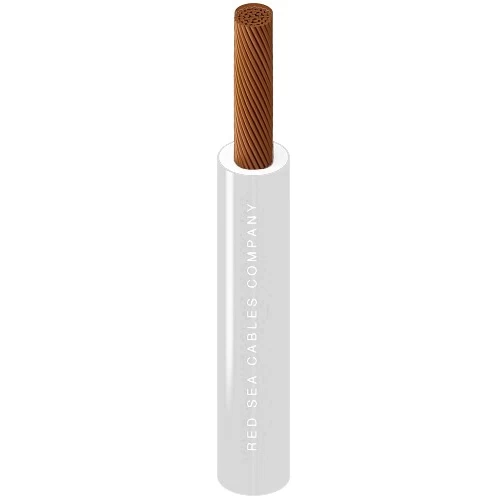

CU/LSNH Flexible Copper Electrical Wire, 70mm2, 450/750V, White Color, 1000 meter/Drum | RESCAB

CU/LSNH Flexible Copper Electrical Wire, 70mm2, 450/750V, White Color, 1000 meter/Drum | RESCAB

(592 Product Views)

Flexible copper wire (CU/LSHF), 70mm2 size, 450/750 volts, It features a protective coating that protects it from corrosion and damage caused by environmental factors, and is available in different shapes and sizes. Red Sea Cables, White Color.

in stock

Quantity

Call Now

🔗 Related Content

PVC Coated Flexible Conduit, Size 4... Liquid Tight Flexible Conduit, Size... Riyadh 6 AWG THHN Stranded Copper A... 4mm 450/750 Volt Solid Copper Wire,... 12x1.5mm 0.6/1kV Stranded Copper Co... CU/LSNH Flexible Copper Electrical... CU/LSNH Flexible Copper Electrical... CU/LSNH Flexible Copper Wire, 35mm2...

Product description

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 70 mm2
Nominal Insulation Thickness: 1.4 mm
Approx Overall Diameter: 14 mm
Max DC Conductor Resistance at 20°C: 0.272 ohm/km
Standard Length: 1000 meter/Drum
Insulation Color: White
Standard: BS EN 50525-3-41
